# Bioinformatics

## There is a better way to find the best

We will see more details later

The idea is to draw a rectangle

• One sequence in the rows
• Another sequence in the columns
• Mark the cells where row letter and column letter are equal

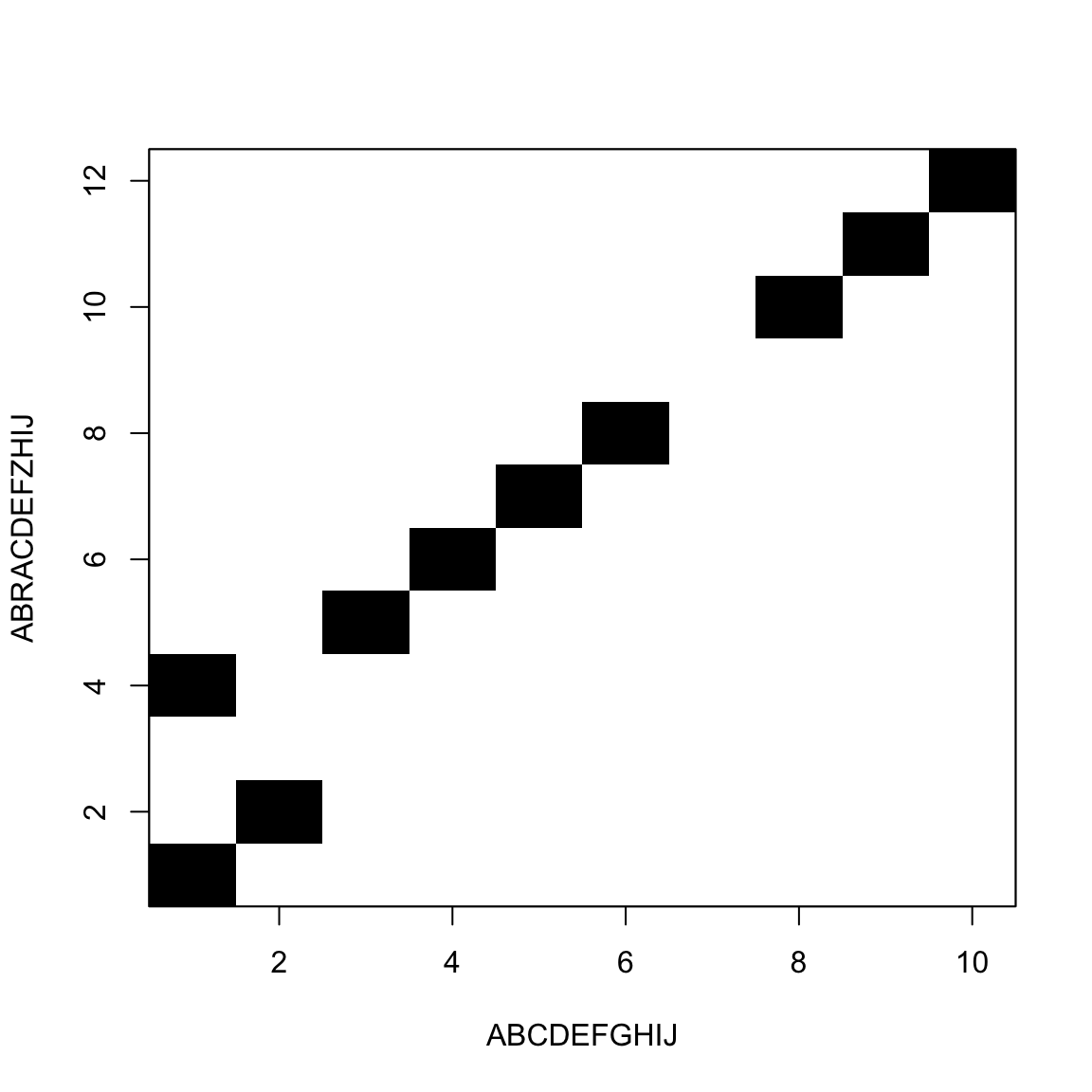

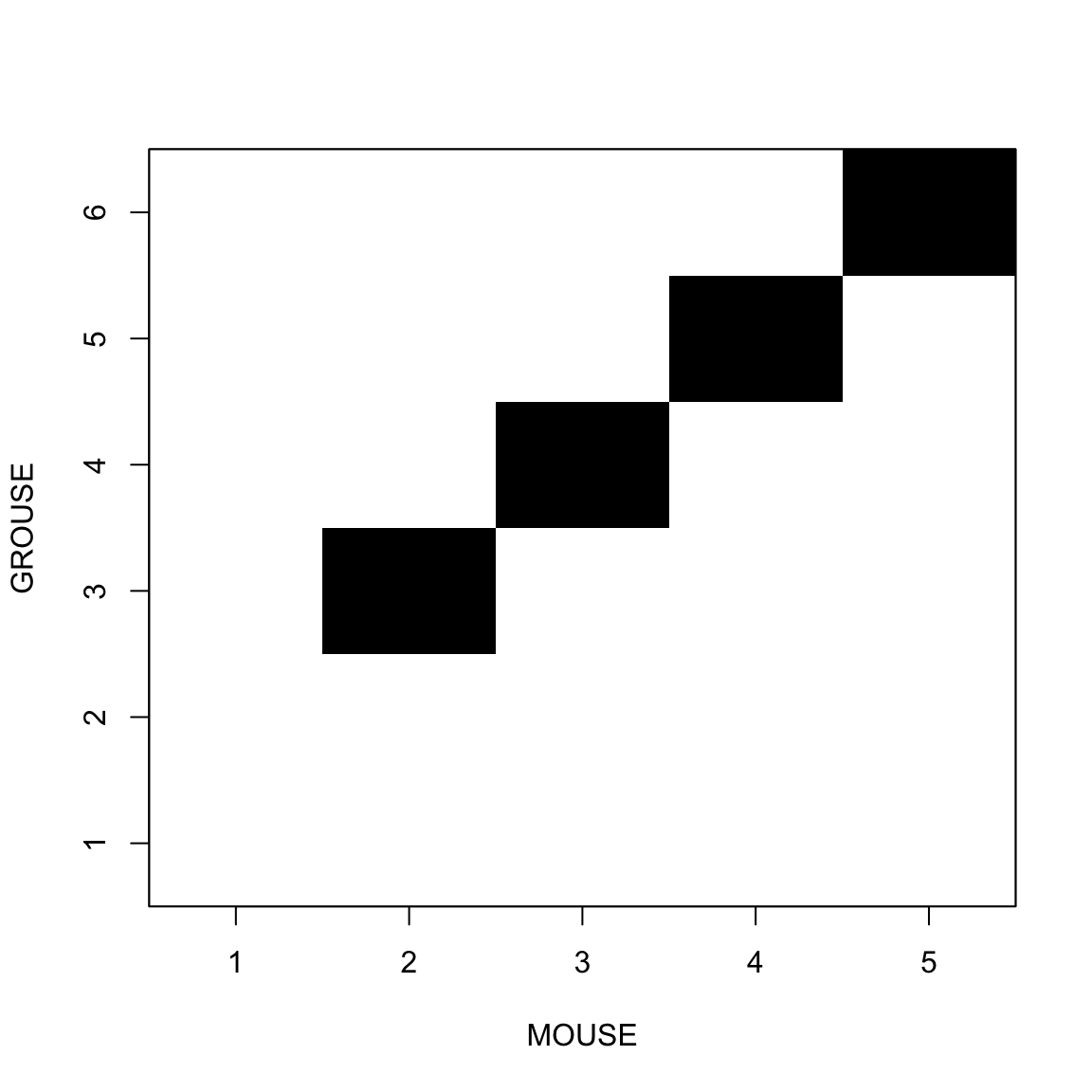

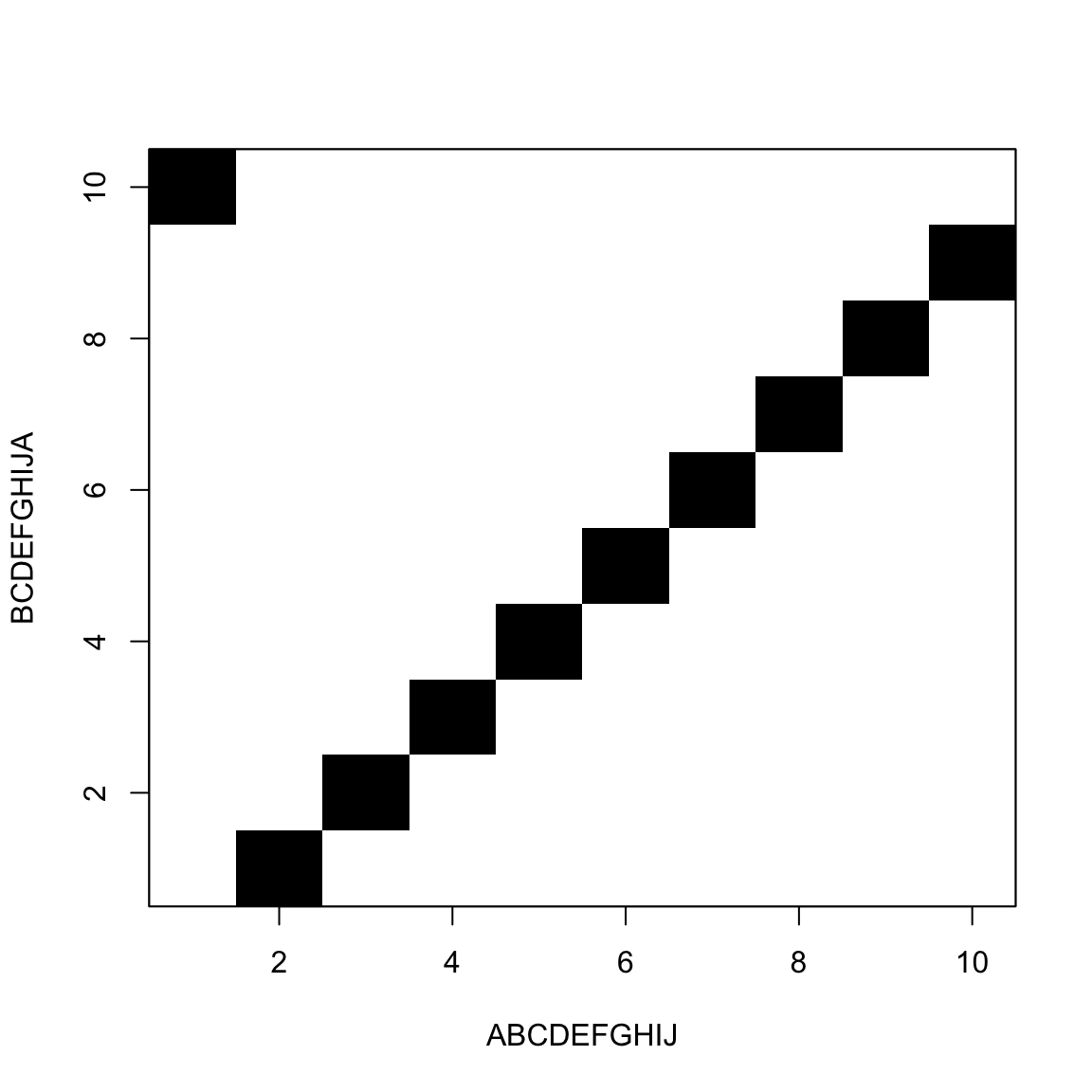

## It looks like this

The goal is to move from one corner to the other

Jumping black to black is free

Horizontal and vertical moves are gaps

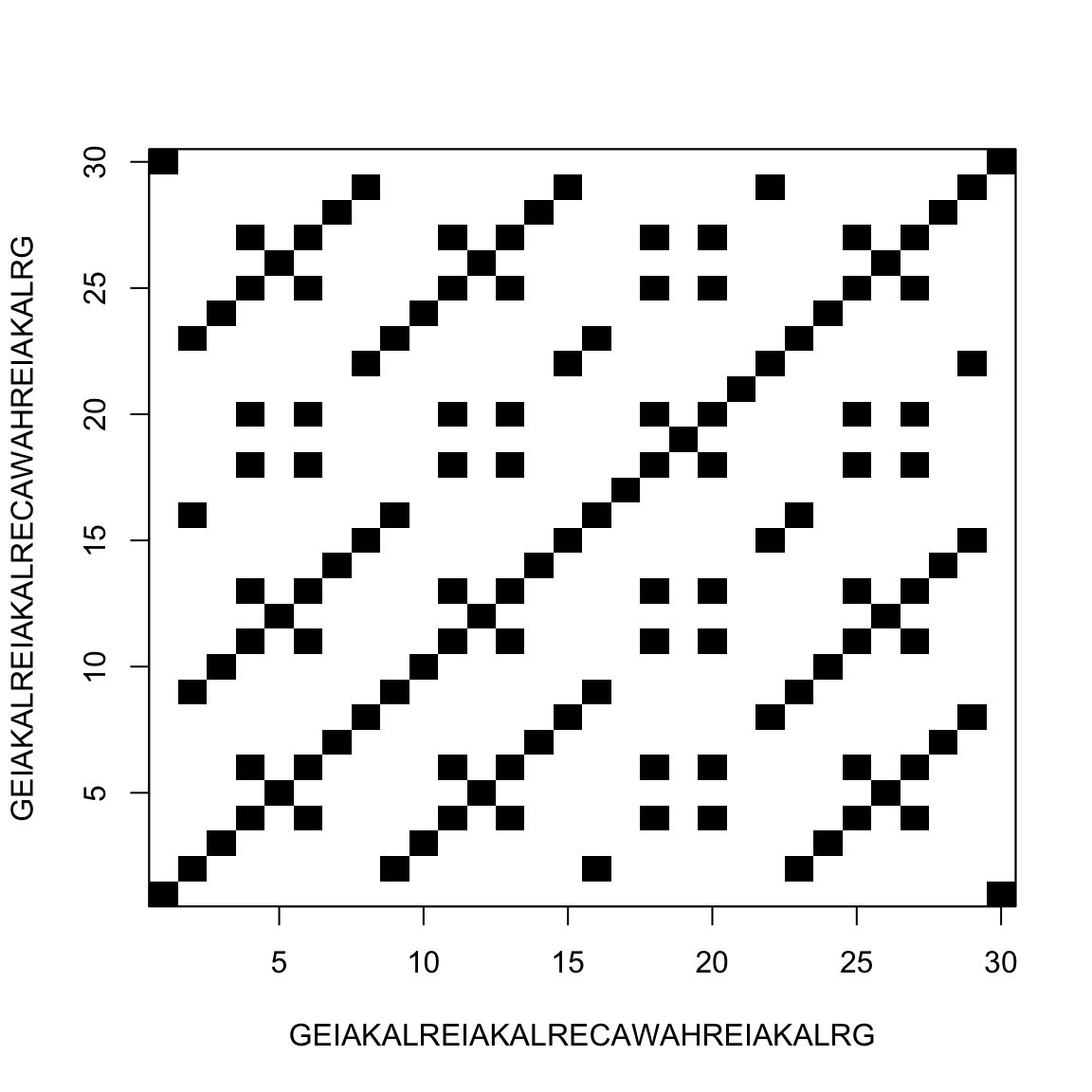

## Comparing a sequence with itself

This allow us to find repeats inside the sequence

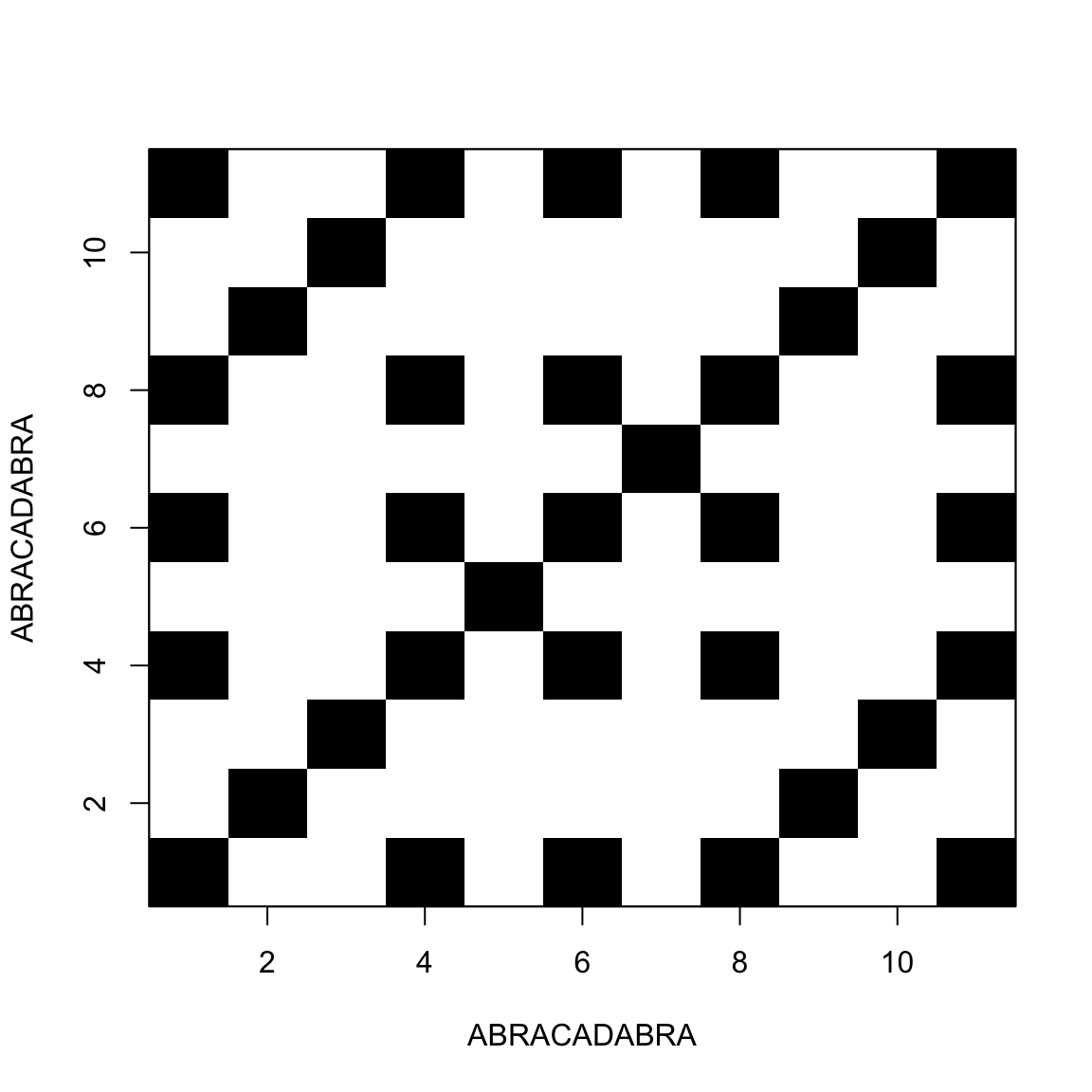

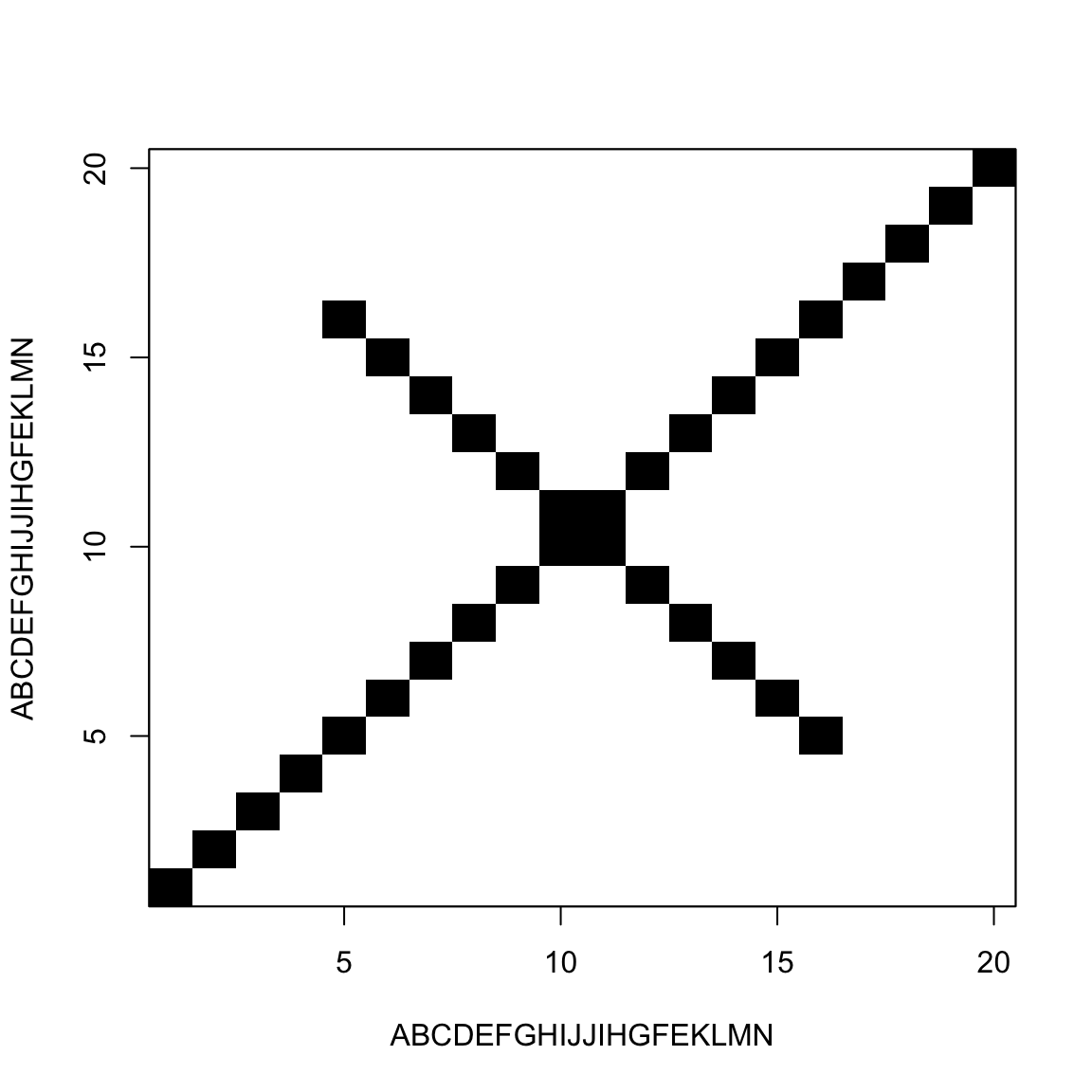

## Palindromic sequences / Hairpins

A sequence is said palindromic when it repeats itself backwards

In RNA that results in a single-strand structure called hairpin

They are usually transcription terminators

## Exercise

Prepare a DotPlot in Excel or Google Sheets

# Partial matching

## Levenstein distance is Global Alignment

Useful to compare proteins

But not good when we look for a gene in a genome
or a domain in a protein

What shall we do when the query is much smaller than all subjects?

## Semi-global alignment

In this case we want to go from one side to the other

## Gaps in semi-global alignment

The query is much smaller than the subject

In this case we distinguish two kind of gaps

• Internal gaps, inside the sequences

• External gaps, outside the query sequence

## External gaps do not count

External gaps are caused by the experiment

For example, we use PCR to cut part of a genome

Therefore anything outside the sequence cannot be seen for technical reasons

## Internal gaps do count

Internal gaps are caused by nature

They are gained or lost during replication

They have biological meaning

Therefore, they must be counted

## We showed Edit distance

“Distance” means that smaller numbers are better

If the distance is 0, then the two sequences are identical

If the distance is small, the two sequences are similar

If the distance is big, the sequences are different

## Different alignments for different questions

• Global alignment compares genes to genes, or proteins to proteins
• We expect that both sequences are similar
• Semi-global alignment compares genes to genomes
• We expect that query is similar to part of subject
• Local alignment compares genomes to genomes
• We expect that part of the query is similar to part of subject

## Global alignment

• all sequences must match.
• Each gap is penalized

## Semi-global alignment

• all sequences must match, but one may be shorter than the other.
• external gaps are not penalized

## Local alignment

• Some part of the sequence must match
• external gaps are not penalized
• can be with or without internal gaps

## Part of query to part of subject

ABRACADABRA
CHUPACABRA

External gaps do not count

      ABRACADABRA
||||
CHUPACABRA

## Local alignment is not a distance

Since external gaps do not count, we can always use them

In this case the smallest distance is always 0

The smallest cost is achieved taking one letter

         ABRACADABRA
|
CHUPACABRA

We cannot solve the minimization problem

Instead of finding a minimum, we look for a maximum

• Matching places get positive score
• Mismatch and gaps get negative score

The philosophy is the same, but we look for big numbers instead of small numbers

## Dot plot becomes a matrix

Initially we placed 1 or 0 on each cell depending on match or mismatch

Now we put positive or negative numbers, depending of single-letter scores

# Substitution scoring matrices

## Single-letter scores (example)

If we pair two letters $$x$$ and $$y$$, we need to know how they contribute to the score value. For example,

• If $$x = y$$ the score increases by 1
• If $$x ≠ y$$ the score decreases by 1
• If one of the letters is - (a gap), the score reduces by 2

In general, we have a substitution scoring matrix $$C_{x, y}$$ for each $$x$$ and $$y$$

## Single-letter scores (example)

In one equation

$C_{x, y} = \begin{cases} +1 & \quad x=y\\ -1 & \quad x≠y\\ -2 & \quad x=\texttt{"-"} \\ -2 & \quad y=\texttt{"-"} \end{cases}$

## Substitution Scoring matrices

The Substitution Scoring Matrix has one row and one column for each letter in our alphabet

For example 4 rows and 4 columns for DNA sequences

In DNA it is common to have +1 for match and -2 for mismatch

Sometimes we can use (+1,-3), (+1,-1) or even (4,-5)

## DNA scoring matrix

   A  C  G  T
A  1 -2 -2 -2
C -2  1 -2 -2
G -2 -2  1 -2
T -2 -2 -2  1

## Amino-acid scoring matrices

For proteins the alphabet has 20 letters, so the scoring matrix is 20×20

The scores of these matrices are based on the relative frequency of each mutation in nature

Obviously, we only care about non-lethal mutations

More specifically, we care about the Point Mutations that are Accepted

These are called PAM matrices (Margaret Dayhoff, 1978)

## PAM matrices

Based on 1572 mutations in 71 families of closely related proteins

Dayhoff only used alignments having at least 85% identity

She assumed that any aligned mismatches were the result of a single mutation event, rather than several at the same location

## PAM matrices

PAM1 is the scoring matrix for proteins in a “short” period

With some easy mathematics we can calculate PAM2, PAM30, PAM250, etc

They represent mutations in 2, 30, and 250 short periods

## PAM30 matrix

    A   R   N   D   C   Q   E   G   H   I   L   K   M   F   P   S   T   W   Y   V   B   J   Z   X   *
A   6  -7  -4  -3  -6  -4  -2  -2  -7  -5  -6  -7  -5  -8  -2   0  -1 -13  -8  -2  -3  -6  -3  -1 -17
R  -7   8  -6 -10  -8  -2  -9  -9  -2  -5  -8   0  -4  -9  -4  -3  -6  -2 -10  -8  -7  -7  -4  -1 -17
N  -4  -6   8   2 -11  -3  -2  -3   0  -5  -7  -1  -9  -9  -6   0  -2  -8  -4  -8   6  -6  -3  -1 -17
D  -3 -10   2   8 -14  -2   2  -3  -4  -7 -12  -4 -11 -15  -8  -4  -5 -15 -11  -8   6 -10   1  -1 -17
C  -6  -8 -11 -14  10 -14 -14  -9  -7  -6 -15 -14 -13 -13  -8  -3  -8 -15  -4  -6 -12  -9 -14  -1 -17
Q  -4  -2  -3  -2 -14   8   1  -7   1  -8  -5  -3  -4 -13  -3  -5  -5 -13 -12  -7  -3  -5   6  -1 -17
E  -2  -9  -2   2 -14   1   8  -4  -5  -5  -9  -4  -7 -14  -5  -4  -6 -17  -8  -6   1  -7   6  -1 -17
G  -2  -9  -3  -3  -9  -7  -4   6  -9 -11 -10  -7  -8  -9  -6  -2  -6 -15 -14  -5  -3 -10  -5  -1 -17
H  -7  -2   0  -4  -7   1  -5  -9   9  -9  -6  -6 -10  -6  -4  -6  -7  -7  -3  -6  -1  -7  -1  -1 -17
I  -5  -5  -5  -7  -6  -8  -5 -11  -9   8  -1  -6  -1  -2  -8  -7  -2 -14  -6   2  -6   5  -6  -1 -17
L  -6  -8  -7 -12 -15  -5  -9 -10  -6  -1   7  -8   1  -3  -7  -8  -7  -6  -7  -2  -9   6  -7  -1 -17
K  -7   0  -1  -4 -14  -3  -4  -7  -6  -6  -8   7  -2 -14  -6  -4  -3 -12  -9  -9  -2  -7  -4  -1 -17
M  -5  -4  -9 -11 -13  -4  -7  -8 -10  -1   1  -2  11  -4  -8  -5  -4 -13 -11  -1 -10   0  -5  -1 -17
F  -8  -9  -9 -15 -13 -13 -14  -9  -6  -2  -3 -14  -4   9 -10  -6  -9  -4   2  -8 -10  -2 -13  -1 -17
P  -2  -4  -6  -8  -8  -3  -5  -6  -4  -8  -7  -6  -8 -10   8  -2  -4 -14 -13  -6  -7  -7  -4  -1 -17
S   0  -3   0  -4  -3  -5  -4  -2  -6  -7  -8  -4  -5  -6  -2   6   0  -5  -7  -6  -1  -8  -5  -1 -17
T  -1  -6  -2  -5  -8  -5  -6  -6  -7  -2  -7  -3  -4  -9  -4   0   7 -13  -6  -3  -3  -5  -6  -1 -17
W -13  -2  -8 -15 -15 -13 -17 -15  -7 -14  -6 -12 -13  -4 -14  -5 -13  13  -5 -15 -10  -7 -14  -1 -17
Y  -8 -10  -4 -11  -4 -12  -8 -14  -3  -6  -7  -9 -11   2 -13  -7  -6  -5  10  -7  -6  -7  -9  -1 -17
V  -2  -8  -8  -8  -6  -7  -6  -5  -6   2  -2  -9  -1  -8  -6  -6  -3 -15  -7   7  -8   0  -6  -1 -17
B  -3  -7   6   6 -12  -3   1  -3  -1  -6  -9  -2 -10 -10  -7  -1  -3 -10  -6  -8   6  -8   0  -1 -17
J  -6  -7  -6 -10  -9  -5  -7 -10  -7   5   6  -7   0  -2  -7  -8  -5  -7  -7   0  -8   6  -6  -1 -17
Z  -3  -4  -3   1 -14   6   6  -5  -1  -6  -7  -4  -5 -13  -4  -5  -6 -14  -9  -6   0  -6   6  -1 -17
X  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1 -17
* -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17   1

## BLOSUM matrices

Using local alignment we can identify conserved regions

In 1992 Steven Henikoff and Jorja Henikoff created new substitution matrices based on local alignment of blocks

BLOcks SUbstitution Matrix

Idea: each protein domain can evolve at different speeds

## BLOSUM62

   A  R  N  D  C  Q  E  G  H  I  L  K  M  F  P  S  T  W  Y  V  B  J  Z  X  *
A  4 -1 -2 -2  0 -1 -1  0 -2 -1 -1 -1 -1 -2 -1  1  0 -3 -2  0 -2 -1 -1 -1 -4
R -1  5  0 -2 -3  1  0 -2  0 -3 -2  2 -1 -3 -2 -1 -1 -3 -2 -3 -1 -2  0 -1 -4
N -2  0  6  1 -3  0  0  0  1 -3 -3  0 -2 -3 -2  1  0 -4 -2 -3  4 -3  0 -1 -4
D -2 -2  1  6 -3  0  2 -1 -1 -3 -4 -1 -3 -3 -1  0 -1 -4 -3 -3  4 -3  1 -1 -4
C  0 -3 -3 -3  9 -3 -4 -3 -3 -1 -1 -3 -1 -2 -3 -1 -1 -2 -2 -1 -3 -1 -3 -1 -4
Q -1  1  0  0 -3  5  2 -2  0 -3 -2  1  0 -3 -1  0 -1 -2 -1 -2  0 -2  4 -1 -4
E -1  0  0  2 -4  2  5 -2  0 -3 -3  1 -2 -3 -1  0 -1 -3 -2 -2  1 -3  4 -1 -4
G  0 -2  0 -1 -3 -2 -2  6 -2 -4 -4 -2 -3 -3 -2  0 -2 -2 -3 -3 -1 -4 -2 -1 -4
H -2  0  1 -1 -3  0  0 -2  8 -3 -3 -1 -2 -1 -2 -1 -2 -2  2 -3  0 -3  0 -1 -4
I -1 -3 -3 -3 -1 -3 -3 -4 -3  4  2 -3  1  0 -3 -2 -1 -3 -1  3 -3  3 -3 -1 -4
L -1 -2 -3 -4 -1 -2 -3 -4 -3  2  4 -2  2  0 -3 -2 -1 -2 -1  1 -4  3 -3 -1 -4
K -1  2  0 -1 -3  1  1 -2 -1 -3 -2  5 -1 -3 -1  0 -1 -3 -2 -2  0 -3  1 -1 -4
M -1 -1 -2 -3 -1  0 -2 -3 -2  1  2 -1  5  0 -2 -1 -1 -1 -1  1 -3  2 -1 -1 -4
F -2 -3 -3 -3 -2 -3 -3 -3 -1  0  0 -3  0  6 -4 -2 -2  1  3 -1 -3  0 -3 -1 -4
P -1 -2 -2 -1 -3 -1 -1 -2 -2 -3 -3 -1 -2 -4  7 -1 -1 -4 -3 -2 -2 -3 -1 -1 -4
S  1 -1  1  0 -1  0  0  0 -1 -2 -2  0 -1 -2 -1  4  1 -3 -2 -2  0 -2  0 -1 -4
T  0 -1  0 -1 -1 -1 -1 -2 -2 -1 -1 -1 -1 -2 -1  1  5 -2 -2  0 -1 -1 -1 -1 -4
W -3 -3 -4 -4 -2 -2 -3 -2 -2 -3 -2 -3 -1  1 -4 -3 -2 11  2 -3 -4 -2 -2 -1 -4
Y -2 -2 -2 -3 -2 -1 -2 -3  2 -1 -1 -2 -1  3 -3 -2 -2  2  7 -1 -3 -1 -2 -1 -4
V  0 -3 -3 -3 -1 -2 -2 -3 -3  3  1 -2  1 -1 -2 -2  0 -3 -1  4 -3  2 -2 -1 -4
B -2 -1  4  4 -3  0  1 -1  0 -3 -4  0 -3 -3 -2  0 -1 -4 -3 -3  4 -3  0 -1 -4
J -1 -2 -3 -3 -1 -2 -3 -4 -3  3  3 -3  2  0 -3 -2 -1 -2 -1  2 -3  3 -3 -1 -4
Z -1  0  0  1 -3  4  4 -2  0 -3 -3  1 -1 -3 -1  0 -1 -2 -2 -2  0 -3  4 -1 -4
X -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -4
* -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4  1
