Class 4: Global and Local Alignment

Bioinformatics

Andrés Aravena

October 26, 2023

Previous class

  • Hamming distance
  • Levenstein distance
  • Dot plot

Dot plot

We have two sequences. Lets give them names

  • Query sequence in the rows
  • Subject sequence in the columns

The idea is to draw a rectangle

Mark cells where row and column letters are equal

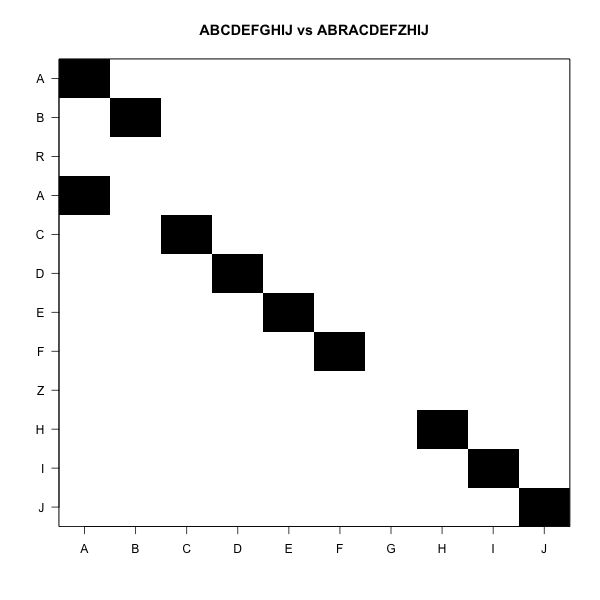

It looks like this

The goal is to move from one corner to the other

Jumping black to black is free

Horizontal and vertical moves are gaps

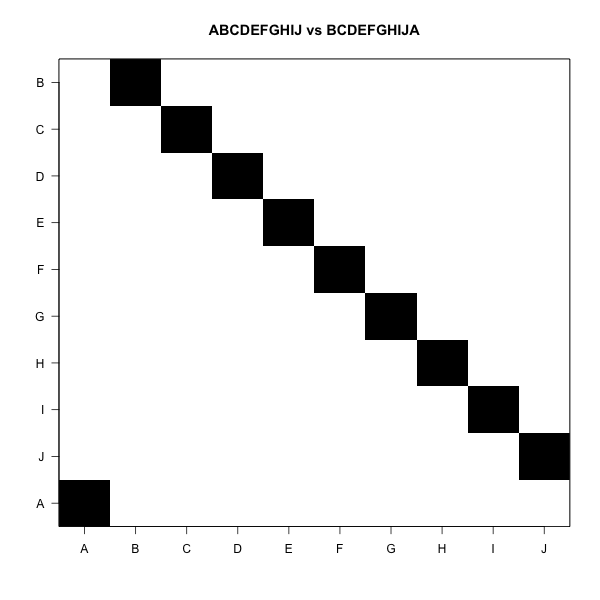

We move from one corner to the other

White blocks add to the distance

This matrix is \(D\) with cells \(D_{i,j}\)

There are two questions

  1. What is the Levenshtein distance
    • That is, the length of the shortest path
  2. What is the optimal alignment
    • That is, what is the shortest path

The first question is easy and has only one answer

The second question is harder and can have many answers

Calculating the score

Levenshtein distance is easy to calculate from the dot plot

We build a second matrix where each cell \(M_{i,j}\) has the smallest number of changes we need to align the query \((q_1,…,q_i)\) to the subject \((s_1,…,s_j)\)

Building the matrix

There are three ways to get to \(M_{i,j}\)

  • In diagonal from \(M_{i-1,j-1},\) and there may be a mismatch
  • Horizontally from \(M_{i,j-1}\) with a gap
  • Vertically from \(M_{i-1,j}\) with a gap

Formula

\[M_{i,j} = \min\begin{cases} M_{i-1,j-1} & \text{if }q_i\not=s_j \text{ (match)}\\ M_{i-1,j-1} + 1 & \text{if }q_i\not=s_j \text{ (mismatch)}\\ M_{i-1,j} + 1 & \text{(gap in subject)} \\ M_{i,j-1} + 1 & \text{(gap in query)} \end{cases}\]

Initial gaps

We need to include an extra row at the beginning of the matrix \(M\)

\[\begin{aligned}M_{i,0} &= i \qquad \text{ for each }i\in\{1,…,m\}\\ M_{0,j} &= j \qquad \text{ for each } j\in\{1,…,n\}\end{aligned}\]

Partial matching

Levenstein distance is Global Alignment

Useful to compare proteins

But not good when we look for a gene in a genome
or a domain in a protein

What shall we do when the query is much smaller than all subjects?

Semi-global alignment

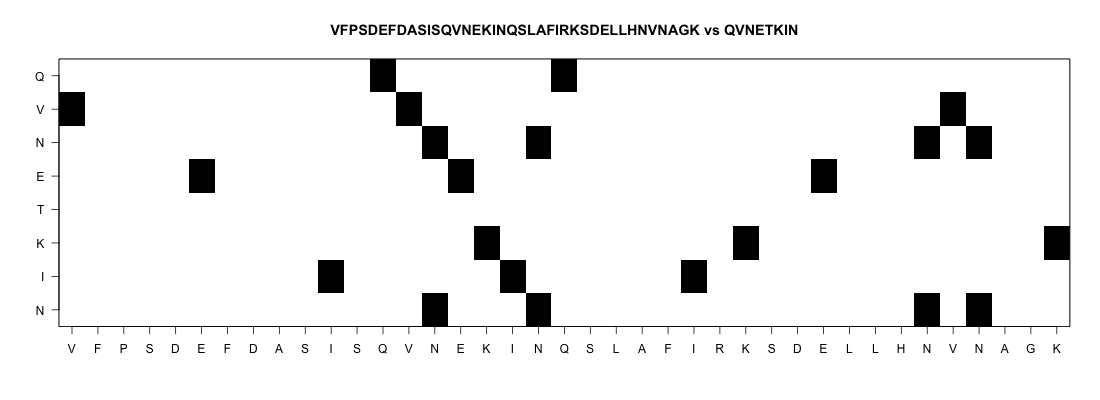

In this case we want to go from one side to the other

Gaps in semi-global alignment

The query is much smaller than the subject

In this case we distinguish two kind of gaps

  • Internal gaps, inside the sequences

  • External gaps, outside the query sequence

External gaps do not count

External gaps are caused by the experiment

Example: PCR cuts part of a genome

The query is the sequence between primers

Anything outside the query cannot be seen for technical reasons

Internal gaps do count

Internal gaps are caused by nature

They are gained or lost during replication

They have biological meaning

Therefore, they must be counted

Initial gaps in Semi-global alignment

This time the first row is 0, because external gaps are free

  • \(M_{i,0} = i\) for each \(i\in\{1,…,m\}\)

  • \(M_{0,j} = 0\) for each \(j\in\{1,…,n\}\)

And we look for the smallest value in the last row

Kinds of alignments

Different alignments for different questions

  • Global alignment compares genes to genes, or proteins to proteins
    • We expect that both sequences are similar
  • Semi-global alignment compares genes to genomes
    • We expect that query is similar to part of subject
  • Local alignment compares genomes to genomes
    • We expect that part of the query is similar to part of subject

Global alignment

  • All sequences must match.
  • Each gap is penalized

Semi-global alignment

  • All sequences must match
  • One may be shorter than the other.
  • External gaps are not penalized
  • Internal gaps are penalized

Local alignment

  • Some part of the sequence must match
  • External gaps are not penalized
  • Can be with or without internal gaps

Global v/s local

Part of query to part of subject

ABRACADABRA
CHUPACABRA

External gaps do not count

      ABRACADABRA
      ||||
CHUPACABRA

Local alignment is not a distance

Since external gaps do not count, we can always use them

In this case the smallest distance is always 0

The smallest cost is achieved taking one letter

         ABRACADABRA
         |
CHUPACABRA

We cannot make it a minimization problem

Score instead of distance

Instead of finding a minimum, we look for a maximum

  • Matching places get positive score
  • Mismatch and gaps get negative score

The philosophy is the same, but we look for big numbers instead of small numbers

Dot plot becomes a matrix

Initially we placed 1 or 0 on each cell depending on match or mismatch

Now we put positive or negative numbers, depending of single-letter scores

Substitution scoring matrices

Single-letter scores (example)

If we pair two letters \(x\) and \(y\), we need to know how they contribute to the score value. For example,

  • If \(x = y\) the score increases by 1
  • If \(x ≠ y\) the score decreases by 2
  • If one of the letters is - (a gap), the score reduces by 4

In general, we have a substitution scoring matrix \(C_{x, y}\) for each \(x\) and \(y\)

Single-letter scores

In one equation

\[C_{x, y} = \begin{cases} +1 & \quad \text{if } x=y\\ -2 & \quad \text{if } x≠y\\ -4 & \quad \text{if } x=\texttt{"-"} \\ -4 & \quad \text{if }y=\texttt{"-"} \end{cases}\]

Substitution Scoring matrices

The Substitution Scoring Matrix has one row and one column for each letter in our alphabet

For example 4 rows and 4 columns for DNA sequences

In DNA it is common to have +1 for match and -2 for mismatch

Sometimes we can use (+1,-3), (+1,-1) or even (4,-5)

DNA substitution matrix

   A  C  G  T  -
A  1 -2 -2 -2 -4
C -2  1 -2 -2 -4
G -2 -2  1 -2 -4
T -2 -2 -2  1 -4
- -4 -4 -4 -4 -4

Amino-acid substitution matrices

In proteins the alphabet has 20 letters, so the scoring matrix is 20×20

The scores of these matrices are based on the relative frequency of each mutation in nature

Obviously, we only care about non-lethal mutations

More specifically, we care about the Point Mutations that are Accepted

These are called PAM matrices (Margaret Dayhoff, 1978)

Accepted Mutation matrices

Based on 1572 mutations in 71 families of closely related proteins

Dayhoff only used alignments having at least 85% identity

She assumed that any aligned mismatches were the result of a single mutation event, rather than several at the same location

PAM matrices

PAM1 is the scoring matrix for proteins in a “short” period

With some easy mathematics we can calculate PAM2, PAM30, PAM250, etc

They represent mutations in 2, 30, and 250 short periods

PAM30 matrix

    A   R   N   D   C   Q   E   G   H   I   L   K   M   F   P   S   T   W   Y   V   B   J   Z   X   *
A   6  -7  -4  -3  -6  -4  -2  -2  -7  -5  -6  -7  -5  -8  -2   0  -1 -13  -8  -2  -3  -6  -3  -1 -17
R  -7   8  -6 -10  -8  -2  -9  -9  -2  -5  -8   0  -4  -9  -4  -3  -6  -2 -10  -8  -7  -7  -4  -1 -17
N  -4  -6   8   2 -11  -3  -2  -3   0  -5  -7  -1  -9  -9  -6   0  -2  -8  -4  -8   6  -6  -3  -1 -17
D  -3 -10   2   8 -14  -2   2  -3  -4  -7 -12  -4 -11 -15  -8  -4  -5 -15 -11  -8   6 -10   1  -1 -17
C  -6  -8 -11 -14  10 -14 -14  -9  -7  -6 -15 -14 -13 -13  -8  -3  -8 -15  -4  -6 -12  -9 -14  -1 -17
Q  -4  -2  -3  -2 -14   8   1  -7   1  -8  -5  -3  -4 -13  -3  -5  -5 -13 -12  -7  -3  -5   6  -1 -17
E  -2  -9  -2   2 -14   1   8  -4  -5  -5  -9  -4  -7 -14  -5  -4  -6 -17  -8  -6   1  -7   6  -1 -17
G  -2  -9  -3  -3  -9  -7  -4   6  -9 -11 -10  -7  -8  -9  -6  -2  -6 -15 -14  -5  -3 -10  -5  -1 -17
H  -7  -2   0  -4  -7   1  -5  -9   9  -9  -6  -6 -10  -6  -4  -6  -7  -7  -3  -6  -1  -7  -1  -1 -17
I  -5  -5  -5  -7  -6  -8  -5 -11  -9   8  -1  -6  -1  -2  -8  -7  -2 -14  -6   2  -6   5  -6  -1 -17
L  -6  -8  -7 -12 -15  -5  -9 -10  -6  -1   7  -8   1  -3  -7  -8  -7  -6  -7  -2  -9   6  -7  -1 -17
K  -7   0  -1  -4 -14  -3  -4  -7  -6  -6  -8   7  -2 -14  -6  -4  -3 -12  -9  -9  -2  -7  -4  -1 -17
M  -5  -4  -9 -11 -13  -4  -7  -8 -10  -1   1  -2  11  -4  -8  -5  -4 -13 -11  -1 -10   0  -5  -1 -17
F  -8  -9  -9 -15 -13 -13 -14  -9  -6  -2  -3 -14  -4   9 -10  -6  -9  -4   2  -8 -10  -2 -13  -1 -17
P  -2  -4  -6  -8  -8  -3  -5  -6  -4  -8  -7  -6  -8 -10   8  -2  -4 -14 -13  -6  -7  -7  -4  -1 -17
S   0  -3   0  -4  -3  -5  -4  -2  -6  -7  -8  -4  -5  -6  -2   6   0  -5  -7  -6  -1  -8  -5  -1 -17
T  -1  -6  -2  -5  -8  -5  -6  -6  -7  -2  -7  -3  -4  -9  -4   0   7 -13  -6  -3  -3  -5  -6  -1 -17
W -13  -2  -8 -15 -15 -13 -17 -15  -7 -14  -6 -12 -13  -4 -14  -5 -13  13  -5 -15 -10  -7 -14  -1 -17
Y  -8 -10  -4 -11  -4 -12  -8 -14  -3  -6  -7  -9 -11   2 -13  -7  -6  -5  10  -7  -6  -7  -9  -1 -17
V  -2  -8  -8  -8  -6  -7  -6  -5  -6   2  -2  -9  -1  -8  -6  -6  -3 -15  -7   7  -8   0  -6  -1 -17
B  -3  -7   6   6 -12  -3   1  -3  -1  -6  -9  -2 -10 -10  -7  -1  -3 -10  -6  -8   6  -8   0  -1 -17
J  -6  -7  -6 -10  -9  -5  -7 -10  -7   5   6  -7   0  -2  -7  -8  -5  -7  -7   0  -8   6  -6  -1 -17
Z  -3  -4  -3   1 -14   6   6  -5  -1  -6  -7  -4  -5 -13  -4  -5  -6 -14  -9  -6   0  -6   6  -1 -17
X  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1  -1 -17
* -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17 -17   1

BLOSUM matrices

Using local alignment we can identify conserved regions

In 1992 Steven Henikoff and Jorja Henikoff created new substitution matrices based on local alignment of blocks

BLOcks SUbstitution Matrix

Idea: each protein domain can evolve at different speeds

BLOSUM62

   A  R  N  D  C  Q  E  G  H  I  L  K  M  F  P  S  T  W  Y  V  B  J  Z  X  *
A  4 -1 -2 -2  0 -1 -1  0 -2 -1 -1 -1 -1 -2 -1  1  0 -3 -2  0 -2 -1 -1 -1 -4
R -1  5  0 -2 -3  1  0 -2  0 -3 -2  2 -1 -3 -2 -1 -1 -3 -2 -3 -1 -2  0 -1 -4
N -2  0  6  1 -3  0  0  0  1 -3 -3  0 -2 -3 -2  1  0 -4 -2 -3  4 -3  0 -1 -4
D -2 -2  1  6 -3  0  2 -1 -1 -3 -4 -1 -3 -3 -1  0 -1 -4 -3 -3  4 -3  1 -1 -4
C  0 -3 -3 -3  9 -3 -4 -3 -3 -1 -1 -3 -1 -2 -3 -1 -1 -2 -2 -1 -3 -1 -3 -1 -4
Q -1  1  0  0 -3  5  2 -2  0 -3 -2  1  0 -3 -1  0 -1 -2 -1 -2  0 -2  4 -1 -4
E -1  0  0  2 -4  2  5 -2  0 -3 -3  1 -2 -3 -1  0 -1 -3 -2 -2  1 -3  4 -1 -4
G  0 -2  0 -1 -3 -2 -2  6 -2 -4 -4 -2 -3 -3 -2  0 -2 -2 -3 -3 -1 -4 -2 -1 -4
H -2  0  1 -1 -3  0  0 -2  8 -3 -3 -1 -2 -1 -2 -1 -2 -2  2 -3  0 -3  0 -1 -4
I -1 -3 -3 -3 -1 -3 -3 -4 -3  4  2 -3  1  0 -3 -2 -1 -3 -1  3 -3  3 -3 -1 -4
L -1 -2 -3 -4 -1 -2 -3 -4 -3  2  4 -2  2  0 -3 -2 -1 -2 -1  1 -4  3 -3 -1 -4
K -1  2  0 -1 -3  1  1 -2 -1 -3 -2  5 -1 -3 -1  0 -1 -3 -2 -2  0 -3  1 -1 -4
M -1 -1 -2 -3 -1  0 -2 -3 -2  1  2 -1  5  0 -2 -1 -1 -1 -1  1 -3  2 -1 -1 -4
F -2 -3 -3 -3 -2 -3 -3 -3 -1  0  0 -3  0  6 -4 -2 -2  1  3 -1 -3  0 -3 -1 -4
P -1 -2 -2 -1 -3 -1 -1 -2 -2 -3 -3 -1 -2 -4  7 -1 -1 -4 -3 -2 -2 -3 -1 -1 -4
S  1 -1  1  0 -1  0  0  0 -1 -2 -2  0 -1 -2 -1  4  1 -3 -2 -2  0 -2  0 -1 -4
T  0 -1  0 -1 -1 -1 -1 -2 -2 -1 -1 -1 -1 -2 -1  1  5 -2 -2  0 -1 -1 -1 -1 -4
W -3 -3 -4 -4 -2 -2 -3 -2 -2 -3 -2 -3 -1  1 -4 -3 -2 11  2 -3 -4 -2 -2 -1 -4
Y -2 -2 -2 -3 -2 -1 -2 -3  2 -1 -1 -2 -1  3 -3 -2 -2  2  7 -1 -3 -1 -2 -1 -4
V  0 -3 -3 -3 -1 -2 -2 -3 -3  3  1 -2  1 -1 -2 -2  0 -3 -1  4 -3  2 -2 -1 -4
B -2 -1  4  4 -3  0  1 -1  0 -3 -4  0 -3 -3 -2  0 -1 -4 -3 -3  4 -3  0 -1 -4
J -1 -2 -3 -3 -1 -2 -3 -4 -3  3  3 -3  2  0 -3 -2 -1 -2 -1  2 -3  3 -3 -1 -4
Z -1  0  0  1 -3  4  4 -2  0 -3 -3  1 -1 -3 -1  0 -1 -2 -2 -2  0 -3  4 -1 -4
X -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -4
* -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4  1
