Class 17: Genome Assembly

Bioinformatics

Andrés Aravena

December 09, 2021

Base calling

From chromatograms to sequences

Sequencers produce signals

  • Sanger produces chromatograms
  • Pyrosequencing make videos
  • others

each method has their own tool to call the bases

For Sanger, that tool is called Phred

Phred

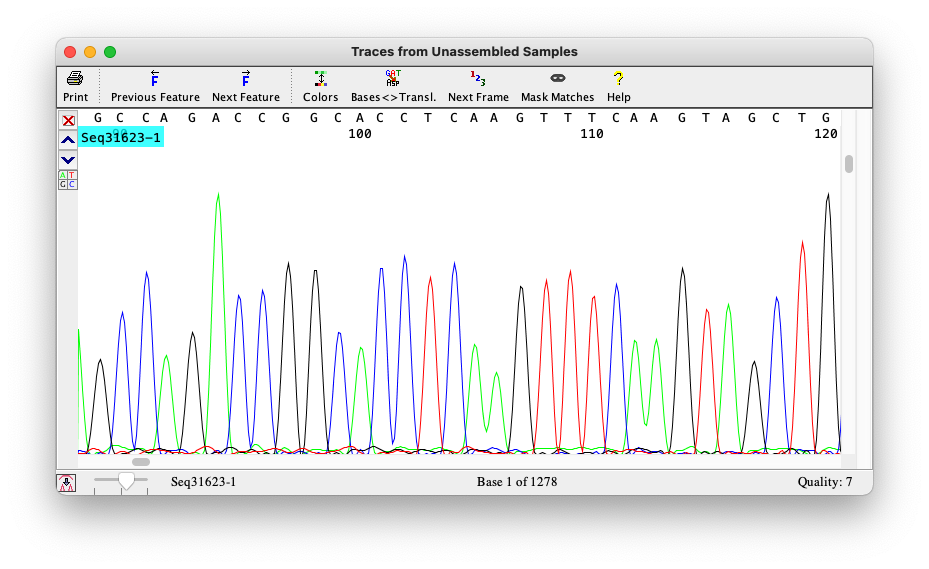

chromatogram

Phred quality

Signal–Ratio is different for each base

As usual we use logarithms, multiply by a constant, and take the integer part \[\lfloor10\cdot\log_{10}(\text{Signal}/\text{Noise})\rfloor\]

Phred quality

Q Error.probability Probability.of.correct
10 0.1000000 0.9000000
15 0.0316228 0.9683772
20 0.0100000 0.9900000
30 0.0010000 0.9990000
40 0.0001000 0.9999000
50 0.0000100 0.9999900
60 0.0000010 0.9999990
70 0.0000001 0.9999999
80 0.0000000 1.0000000

Phred quality of each base

phred quality

Phred file format (.phd)

BEGIN_SEQUENCE GTFAG75TF.scf

BEGIN_COMMENT

CHROMAT_FILE: GTFAG75TF.scf
ABI_THUMBPRINT: 0
TRACE_PROCESSOR_VERSION:
BASECALLER_VERSION: phred 0.071220.c
PHRED_VERSION: 0.071220.c
CALL_METHOD: phred
QUALITY_LEVELS: 99
TIME: Fri Nov 22 15:00:37 2019
TRACE_ARRAY_MIN_INDEX: 0
TRACE_ARRAY_MAX_INDEX: 9116
TRIM: 34 555 0.0500
TRACE_PEAK_AREA_RATIO: 0.0255
CHEM: prim
DYE: rhod

END_COMMENT

BEGIN_DNA
g 6 8
a 6 24
g 6 28
a 8 45
g 8 50
a 8 59
t 8 77
c 8 87
t 9 100
a 9 115
g 11 124
t 11 140
g 15 147
t 8 162
g 9 170
c 12 182
t 9 197
g 17 207
g 20 221
a 21 234

Files of type .qual

This is FASTA format, with numbers instead of letters

Each number is the quality of the corresponding letter

>GTFAG75TF.scf    702      0    702  SCF
6 6 6 8 8 8 8 8 9 9 11 11 15 8 9 12 9 17 20 21 20 18 9 10 6 6 6 6 8 16 11 6 6 8
20 17 30 30 44 44 29 16 9 9 9 22 23 44 44 32 32 32 34 34 34 38 38 38 38 34 38 38
38 38 44 34 34 34 39 44 47 47 53 53 53 53 53 47 47 47 47 47 47 53 53 47 53 53 53
47 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59
59 59 59 59 59 24 24 59 59 59 59 62 62 62 62 62 62 62 59 59 59 59 59 59 51 59 59
62 59 59 59 59 59 59 59 59 56 59 59 59 59 59 56 56 56 39 38 38 38 56 56 56 56 59
62 62 62 62 59 59 59 59 59 59 59 62 62 62 62 62 62 44 40 40 28 28 28 59 59 56 59
59 56 56 56 56 59 56 56 59 59 59 59 59 59 59 59 56 56 56 56 56 56 59 59 59 59 62
59 59 56 56 56 59 56 59 59 59 59 59 59 47 59 59 59 59 59 59 59 59 59 59 59 59 59
56 56 56 56 56 59 62 59 59 59 59 59 59 59 59 59 59 59 59 62 62 62 62 59 59 59 59
59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 25 25 59 59 59 59 59 59
59 59 59 59 59 59 59 59 59 59 53 53 43 43 43 53 53 53 53 53 53 53 53 53 53 47 47
47 47 47 44 39 53 39 39 39 39 39 53 53 53 53 53 47 47 43 44 38 38 32 38 27 27 32
31 29 29 35 35 36 35 35 38 38 43 43 43 38 53 39 34 34 53 53 47 43 47 53 53 53 53
53 53 47 47 43 39 32 32 29 30 30 38 34 35 26 44 44 44 38 33 26 24 27 29 33 33 35
38 38 38 34 34 34 38 32 38 34 34 34 39 32 39 34 30 32 32 34 34 38 38 38 38 38 38
38 38 29 29 27 18 17 27 27 27 20 20 33 29 33 32 32 32 35 38 38 34 34 34 35 47 34
38 32 32 25 27 20 20 15 24 30 32 32 32 31 29 29 27 29 32 31 24 29 33 32 33 31 28
29 29 24 24 29 29 29 32 32 31 29 24 29 24 24 23 19 20 23 21 21 17 18 10 10 10 9
7 9 9 9 9 11 19 25 21 21 20 23 24 24 24 18 18 10 10 10 18 20 20 14 24 15 20 20
29 24 17 20 15 14 14 12 11 9 8 6 6 6 8 8 8 10 10 10 18 18 24 24 16 18 13 11 11
14 10 9 16 11 10 10 11 10 13 10 19 21 17 8 6 6 6 11 10 11 11 10 10 12 10 19 18 9
7 10 6 6 6 9 11 9 10 10 12 8 6 6 6 6 8 8 9 9 9 9 8 11 11 11 7 7 11 6 6 6 6 6 6 9
7 6 6 8 8 11 6 6 6 6 6 6 6 9 6 6 6 8 6 8 9 8 6 6 6 6 6 9 6 6 8 6 6 6 6 6 8 11 12
11 9 9 9 7 12 8 9 7 9 9 9 6 6 9 9 7 7 7 7

FASTQ

Inspired by FASTA, combining sequences and qualities

  • Each entry starts with @ instead of >, and the read ID
  • The second line is the sequence, base by base
  • Line 3 starts with +, can be followed by the ID again
  • Line 4 has the qualities encoded, one symbol for each base
@001043_1783_0863
CTGATCATTGGGCGTAAAGAGTGCGCAGGCGGTTTGTTAAGCGAGATGTGAAAGCCCCGGGCTCAACCTGGGAATTGCATTTCGAACTGGCGAACTAGAGTCTTGTAGAGGGGGTAGAATTCCAGGTGTAGCGGTGAAATGCGTAGAGATCTGGAGGAATACCGGTGGCGAAGGCGGCCCCCTGGACAAAGACTGACGCTCAGGCACGAAAGCGTGGGGAGCAAACAGGATTAAATACCCTCGTA
+001043_1783_0863
<<<<<<<>;>=0<<<=<-<<<<<<<<<>:<>:>=/<?;?;<<<<<<<<<<>=0<<<5(=<-<<<>;?;<>=0>;?;<<<>=/<<>:;<<8<<?;<<<:<<<<?;<<<<<;:71(;;;?;>9>:<>:;<<<;<>9<<>=1<<<<<<<<<<<<<>;;?;>:<:?;?;<>:<<?;?;<?;;;70';>;9<>=1;:<;;;:<<<<<?;;<<<>=2<<;<<<5(<;9>=0;<?;<>;=<2:8>=1:9<<9

Encoding quality in a single letter

Each quality value between 0 and 90 is represented by the corresponding symbol in the following text

!"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghijklmnopqrstuvwxyz{|}~

Initially FASTQ were supposed to have sequences and qualities in several lines, but the symbols + and @ can be quality values

To avoid ambiguity, each entry has exactly 4 lines.

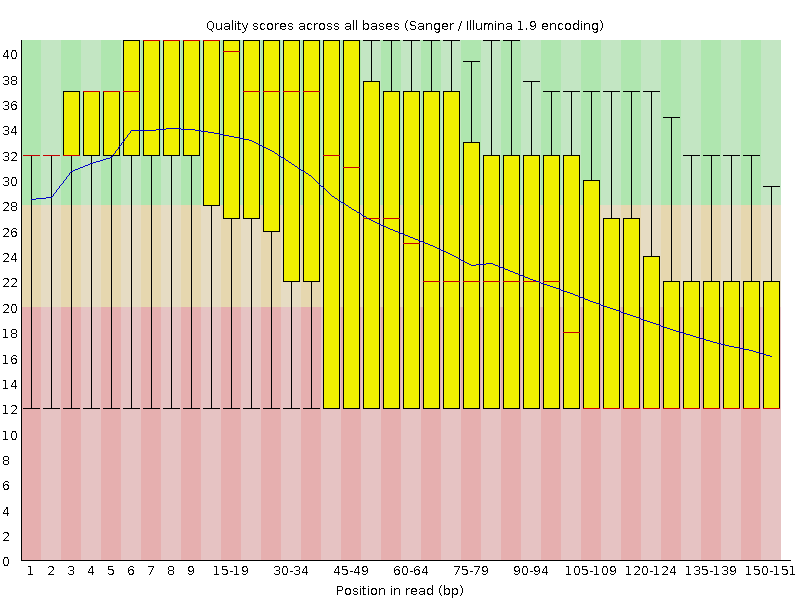

Quality control: FastQC

Assembly

Assembling genomes

Once we have all the reads, how do we get the genome?

Imagine a book of 1000 pages:

  • several copies of the book are cut randomly in one million pieces
  • different pieces may overlap
  • half of the pieces are lost
  • the remaining half is splashed with ink in the middle

The problem is to reconstruct the original book

When not to assemble

If we already know the genome, we do not need to assemble it

This is obvious. Still, it is an important case

  • When we sequence expressed genes, i.e. RNAseq
  • When we look for polymorphisms

De novo Strategies

Also called ab initio

These are Latin words meaning “from new” or “from the start”

There are basically three strategies used to assemble genomes

  • Greedy algorithms
  • Overlap – Layout – Consensus
  • De Bruijn graphs

Today we will speak about the first two strategies

Greedy algorithm

Given a set of sequence fragments, the object is to find a longer sequence that contains all the fragments.

  1. Evaluate the pairwise alignments of all fragments
  2. Choose two fragments with the largest overlap
  3. Merge the chosen fragments
  4. Repeat step 2 and 3 until only one fragment is left.

Overlap

  • All reads are compared to each other
    • and to their reverse-complement
  • The alignment considers each base’s quality
  • When the end of one read matches the start of another read, we say that they overlap

Sometimes reads do overlap

Sometimes they do not overlap

Problems with the greedy approach

The final sequence may be wrong

Two different reads A, B may match the same read X

To decide which one is correct, a Layout stage is used

Layout

In this approach, the overlap between reads is used to build a graph of reads relationships

This graph determines the layout of all reads,
that is, their relative positions

Contigs

Usually there are several independent groups of reads that are not connected in the layout graph

(we say that the graph has several connected components)

All the reads that are connected together form a contig

Consensus

Once the layout is clear, the last step is to retrieve the consensus sequence of the contig

In fact, it is not a consensus. It is a vote. The majority wins

High quality votes are more important than low quality ones

Example: Phrap assembler

The human genome project used Phred for base-calling and Phrap for assembly

Phrap produces several files. The most important has extension .ace

These programs are free for academic usage (non-commercial)

Example ACE file

AS 36 39

CO Contig1| 131 1 1 U
gctagaaaaaaaaggactcccagtagaaatacgtacaataaagtaggttc
ctctagttaactgttacaaaataagtttcccattggtaatataatagatt
tataactgttatatccagagcaacctagggg

BQ
 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
 15

AF 5765593 U 1
BS 1 131 5765593

RD 5765593 131 0 6
gctagaaaaaaaaggactcccagtagaaatacgtacaataaagtaggttc
ctctagttaactgttacaaaataagtttcccattggtaatataatagatt
tataactgttatatccagagcaacctagggg

Example ACE file (last part)

CO Contig36 111 2 63 U
taTAAAGTCGATGGGGAGGAAGATAGGGGAGCTAAAGCCATAGGGAAACC
ACGTAGTTCTGCGTCAAGCGTTgccttcCGAGGTGCTCTCCGCTTTTCCA
TGCtccaatcg

BQ
 15 15 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15 15 15 15 15 15
 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15
 15 15 15 15 15 15 15

AF 5648323 U 1
AF 5703145 U 1

Depth

contig depth
